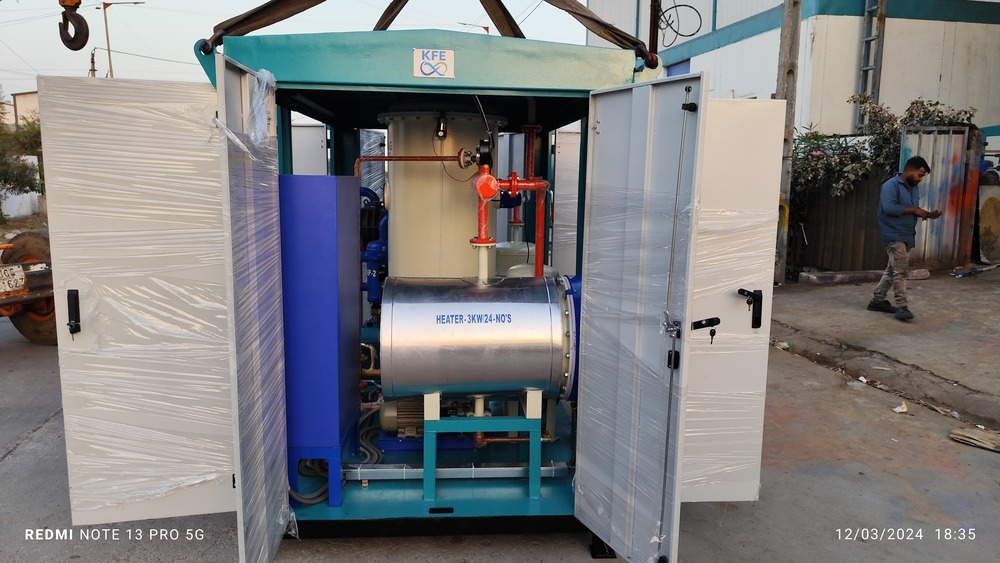

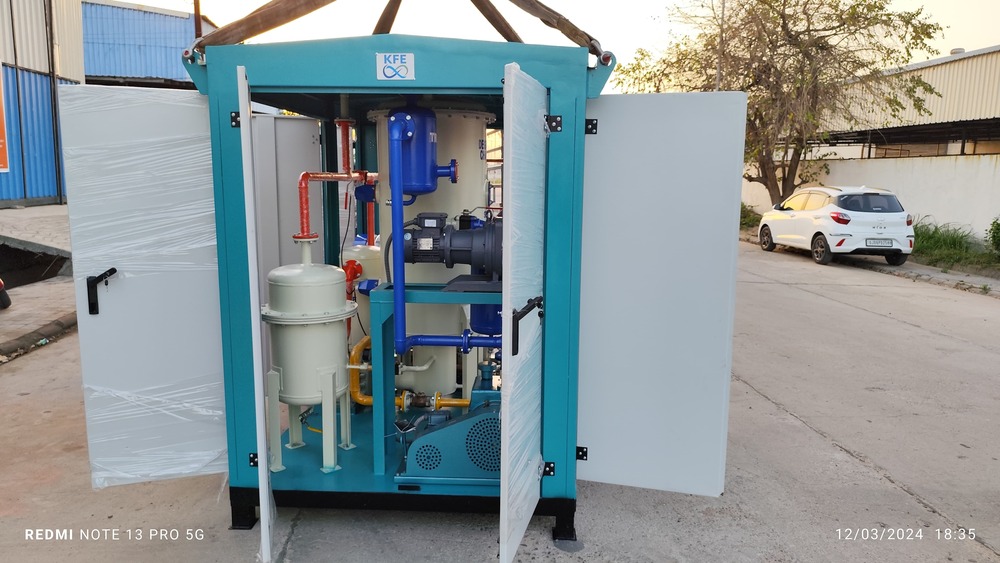

Transformer Oil Filtration Machine

Product Description

We Have Manufacturer For transformer oil filtration machine is a specialized equipment used to clean and purify transformer oil also known as insulating oil This process is crucial for maintaining the optimal performance and longevity of electrical transformers Here an overview of what a transformer oil filtration machine typically includes and how it functions

( https://www.youtube.com/results?search_query=krisha+filter+equipments )

Transformer Oil Filtration Machine Manufacturer in india

Transformer Oil Filtration Machine Manufacturer in Gujarat

Transformer Oil Filtration Machine Manufacturer in Vadodara

Transformer Oil Filtration Machine Supplier in india

Transformer Oil Filtration Machine Supplier in Gujarat

Transformer Oil Filtration Machine Supplier in Vadodara

Components of a Transformer Oil Filtration Machine

Oil Inlet Where contaminated transformer oil enters the filtration system This is typically equipped with valves and fittings to control the flow of oil

Pre Filtration Stage Often includes a coarse filter or strainer to remove larger particles debris and sediment from the oil This helps prevent clogging of finer filters downstream

Heating System Transformer oil is heated to a specific temperature usually around 60 70C to reduce viscosity and enhance the efficiency of filtration Heating also aids in removing moisture and gases from the oil

Fine Filtration Consists of multiple stages of filters with progressively finer pore sizes from coarse to micron filters These filters remove smaller particles sludge oxidation byproducts and other contaminants from the oil

Degassing Chamber Utilizes vacuum technology to remove dissolved gases such as oxygen nitrogen and carbon dioxide from the transformer oil This process is crucial for improving the dielectric strength and performance of the oil

Dehydration Unit Often integrated with the degassing chamber the dehydration unit removes moisture and water content from the oil This is achieved through heating and vacuum processes ensuring the oil meets required moisture content standards

Oil Outlet Where purified transformer oil exits the filtration machine after undergoing filtration degassing and dehydration processes It includes valves and fittings to control the discharge of clean oil

Control Panel Contains instruments gauges and controls to monitor and regulate various parameters such as temperature vacuum level flow rate and pressure Operators can adjust settings to optimize the filtration process

Safety Features Includes pressure relief valves temperature sensors alarms and interlocks to ensure safe operation and protect against over pressure overheating and other potential hazards

Functioning of a Transformer Oil Filtration Machine

Initial Inspection Before filtration begins the condition of the transformer oil is assessed and samples may be taken for analysis

Oil Circulation The contaminated transformer oil is pumped into the filtration machine through the oil inlet

Pre Filtration The oil passes through a pre filter to remove large particles and sediment

Heating The oil is heated to the desired temperature to improve fluidity and enhance the separation of water and gases

Fine Filtration The oil flows through multiple stages of fine filters where smaller contaminants are removed

Degassing and Dehydration In the degassing chamber the oil undergoes vacuum treatment to remove dissolved gases Simultaneously the dehydration unit removes moisture and water content from the oil

Quality Control Throughout the process parameters such as oil temperature vacuum level and filtration efficiency are monitored to ensure the oil meets specified quality standards

Oil Outlet Purified transformer oil exits the machine and can be reintroduced into the transformer improving its dielectric strength and performance

Being a reliable firm in this domain we have been engaged in manufacturing and supplying premium grade Transformer Oil Filtration Machine This machine is mainly designed for oil filtration purpose by reducing acidity of oil Provided machine is highly appreciated among clients due to its robust construction longer service life fast processing speed and power efficiency Offered machine finds its application in oil refineries This machine is made using topnotch quality tested components by our adept professionals with cutting edge techniques Moreover this Transformer Oil Filtration Machine can be purchased from us in different specifications
